Jefftron Active brake - V2 Mosfet with wiring

Professionally made mosfet with motor active braking designed for airsoft electric guns (AEG). The device increases gun rate of fire and battery holds longer than with basic wiring. In semi fire mode piston isn't partially stretched, spring is fully released, parts in mechabox aren't under strain and nozzle locks hop-up chamber in greater part (depends on ROF). Active break solves multiple shots in semi mode with weapons with a very high rate of fire (ROF). It is fully integrated inside the gearbox version 2 instead of the original trigger contacts, compatible with Tokyo Marui standard.

    SPECIFICATIONS:
  • Active brake build on trigger contacts from SHS company
  • Easy installation inside the gearbox version 2
  • Presoldered wires allow faster and easier installation into the gun, it is long enough for all kind of weapons. Simply cut wires to the required length and attach connectors (included in the package)
  • On the devices are pre soldered high quality 2 black wires 1,5 mm (AWG16) with thin and hard MPPE insulation, length 300 mm to the motor and 700 mm to the battery. The blue wire 0.34 mm (AWG24) with a length 1000 mm is used for connection anywhere on the red cable
  • In the package is included 1000 mm red wire 1,5qmm (AWG16) with thin and hard MPPE insulation
  • Wiring is designed to lead into the stock, but it can go to the front under the condition to turn around black battery wire on the board (resolder it)
  • Board with electronics is coated with lacquer, it protects the device against water
  • If you want to use your own wires, choose device without wiring
  • Designed for spring up to M160 (equivalent for current 75A single shot fire or 25A burst fire for max. 30s). For higher load please use Active Brake II (it is outside gearbox)
  • Specified for common batteries up to 17V (Ni-xx 8.4 - 12V, lipol 7.4 - 14.8V)
  • No current consumption in the idle mode
  • No sparking on switch contacts
  • Active braking uses excess energy from the motor to stop it. The braking effect is the most powerful with high torque motor

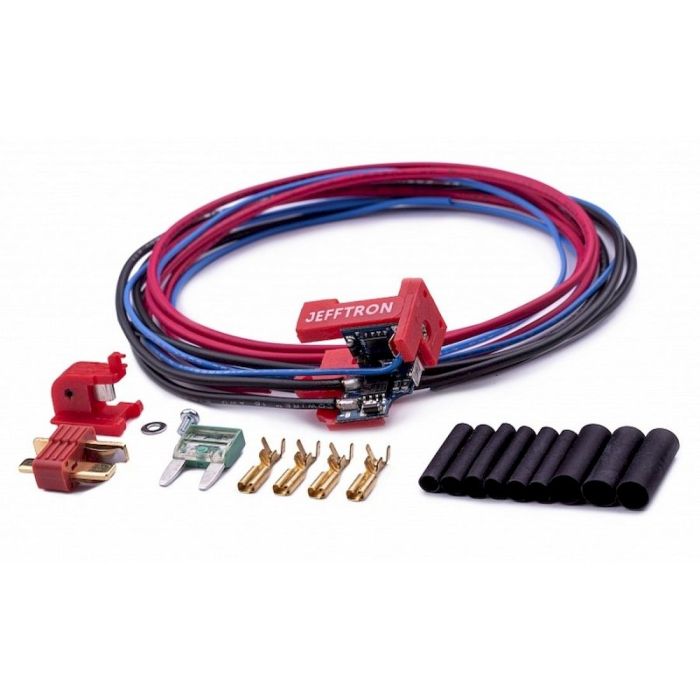

  • Mosfet with the active brake on trigger contacts with wiring
  • trigger switch
  • screw, pad (for the screw to keep the device in the position)
  • DeanT connector male
  • 30A mini fuse
  • 4x faston female 2,8mm
  • 6x black heat shrink tube 3,2mm - length 20mm
  • 3x black heat shrink tube 4,8mm - length 20mm
  • installation manual in English
  • WARNING: Installation of this device leave to expert, who could solder and disassemble airsoft gun. Never user soldering gun! We can't guarantee 100% compatibility with all gearboxes, but Active brake - V2 will fit into standard and common brand's gearboxes without larger modifications.

    These generally require a level of technical skill to fit properly so we do advise you have it fitted by a competent technician.

    Any questions on compatibility, installation or if you would like one of our in house techs to fit the parts for you, please email us on [email protected] or call us on 01293 525880
