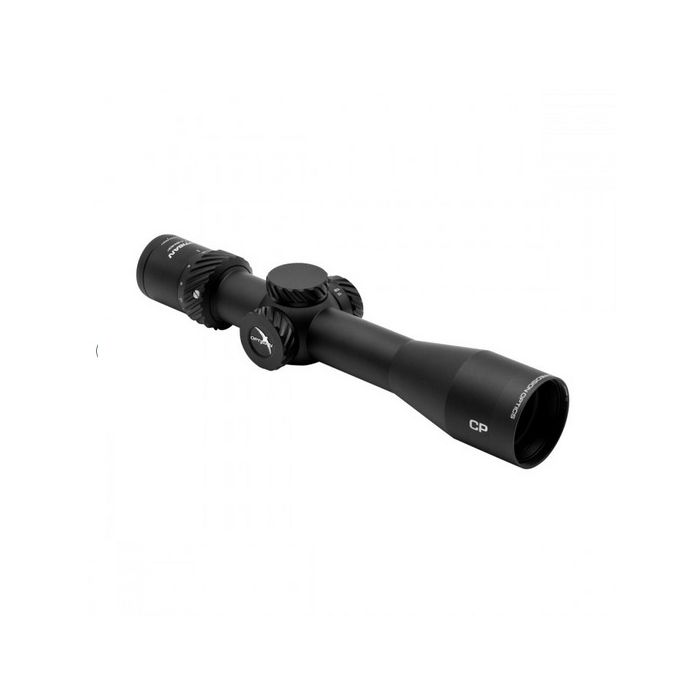

This is a second focal plane-based rifle scope equipped with an MH10 non-illuminated reticle.

The second focal plane reticle gives adequate holdover markings for most air rifle shooting disciplines including HFT and general hunting applications.

The Optisan CP range of riflescopes has always been a fan favourite in the HFT world thanks to its compact design and small objective lens sizes which allows the shooter to mount the rifle scope closer to the barrel to help with bullet trajectories.

The Optisan CP, like every other CP within the range, has parallax adjustments down to 10 yds and out to infinity. The Optisan CP 4-16x40 is a 30mm main tube which is made from one-piece aircraft-grade aluminium, with a length of 268mm and weighs only 530 grams, making it great for hunting out in the field and vermin control.

Features
• Magnification (High): 16X ±5%
• Magnification (Low): 4X ±5%
• Objective Diameter (mm): 40mm
• Outer dia. Objective (mm): 48mm
• FOV (min.mag）(ft/100yds): 26.20
• FOV (max.mag）(ft/100yds): 6.55
• Eye relief (in): 3.5'' - 3.3''
• Exit Pupil (Max mag.): 10 mm
• Exit Pupil (min. mag.): 2.5 mm
• Diopter Range (dpt): +/- 2.0
• Parallax Adjustment : 10yds - infinity (100yds pa free)
• Coating: Fully Multi-coated
• Tube Construction: One-piece tube, aircraft aluminum
• Elevation Adjustment (value per click): 0.1 mrad
• Windage Adjustment (value per click): 0.1 mrad
• Turret Style (Elevation): Low profile
• Turret Style (Windage): Low profile
• Elevation adj. range: ≥ 18 mrad
• Windage adj. range: ≥ 18 mrad
• Eye Piece Diameter (in): L1.55''
• Eye Piece Diameter (mm): 39.5 mm
• Eye Piece Length (in): 1.08''
• Eye Piece Length (mm): 27.55 mm
• Mounting Length rear (mm): 55.70 mm
• Mounting Length front (mm): 30.00 mm
• Tube Dia. (mm): 30 mm
• Length (in): 10.55''
• Length (mm): 268mm
• Weight (g): 530g
• Weight (oz): 18.69 oz
• Surface Finish Matte Black
• Reticle: SFPMH10X
• Focal plane SFP
• Illumination: Non-Illuminated
• Standard Accessories: 2.5" sunshade and flip up covers.
