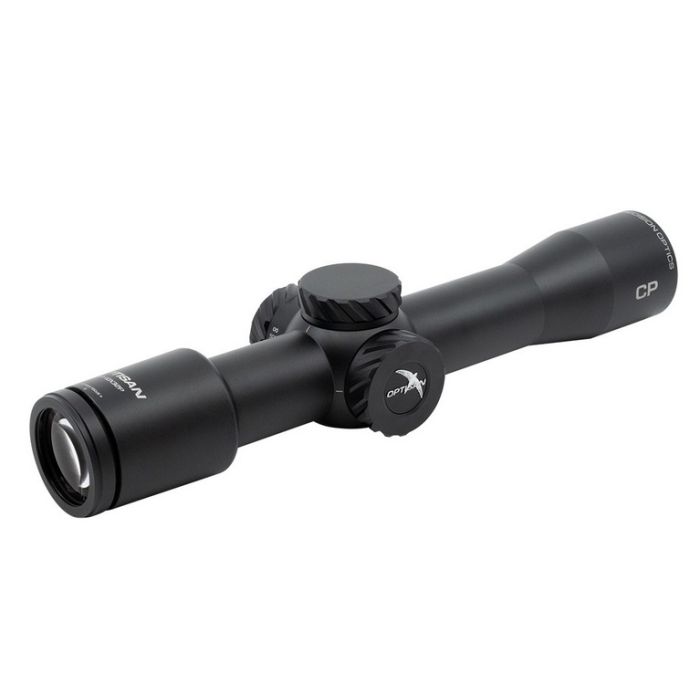

The Optisan CP compact is suitable for air rifles and guns with recoil such as spring rifles, rimfire, and centrefires.

Specification
• 10x fixed magnification
• Objective: 32mm
• FOV @ 100Yds: 10.80
• Eye Relief: 3.24"
• Exit Pupil (Max mag.） (mm): 3.2 mm
• Exit Pupil (min. mag.） (mm): 3.2 mm
• Diopter Range (dpt): +/- 2.0
• Parallax Adjustment :10yds - infinity (100yds pa free)
• Coating: Fully Multi-Coated
• Tube Construction One-piece tube, aircraft aluminum
• Elevation Adjustment (value per click) 0.1 mrad
• Windage Adjustment (value per click) 0.1 mrad
• Turret Style (Elevation) Low-profile, Zero-resettable
• Turret Style (Windage) Low-profile, Zero-resettable
• Travel Per Rotation 10 mrad
• Elevation adj. range ≥ 20 mrad
• Windage adj. range ≥ 20 mrad
• Eye Piece Diameter (in) 1.55''
• Eye Piece Diameter (mm) 39.5 mm
• Eye Piece Length (in) 1.65''
• Eye Piece Length (mm) 42 mm
• Mounting Length rear (mm) 55.50 mm
• Mounting Length front (mm) 37.50mm
• Tube Dia. (mm) 30 mm
• Length (in) 9.52''
• Length (mm) 242mm
• Weight (g) 478
• Weight (oz) 16.86
• Surface Finish Matte Black
• ENVIRONMENT DATA
• Functional temperature -20 ~ 50 degree celcius
• Storage temperature -20 ~ 50 degree celcius
• Submersion tightness JIS 7
• RETICLE DATA
• Reticle SFPMH10X
• Calibrated Ranging Power 10X
• Focal plane Second
• Illumination Non-illuminated
